Deluxe with 12″ Rear Wheels

Deluxe with 12″ Rear Wheels
by Medline

Model No. MDS808210A
12″ rear wheels and features handle loop brakes for the attendant.
  • 300 lb. weight capacity
  • Seat belt included
  • Fold-down backrest
Owner’s Manual

Description

Features

  • 300 lb. weight capacity
  • Seat belt included
  • Fold-down backrest

Key Specs

  • Quick-Release Axles: No
  • Weight capacity: 300 lbs.
  • Weight: 23.5 lbs.

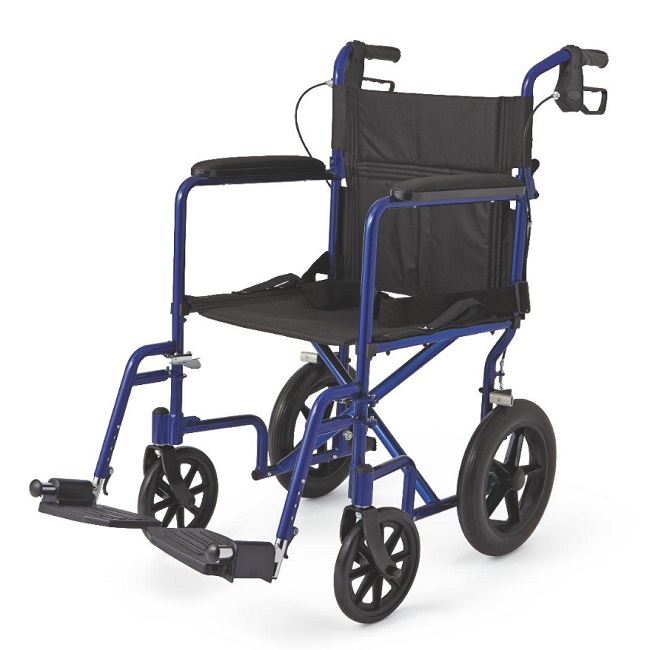

Overview of the Deluxe with 12″ Rear Wheels

The Medline Deluxe Aluminum Transport Chair with 12″ Rear Wheels is made of a powder coated aluminum frame making it more lightweight and durable than carbon steel frame chairs. This chair is available in a 18″ wide seat with permanent full-length arms and swing-away detachable footrests. It has a seatbelt for safety, black nylon upholstery and is available in a blue frame. The chair also has rear handles that fold down for easy storage or transportation and comfortable padded armrests.

Measuring Guide

Seat Depth1
Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
Back Height2
Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.
Rear Seat to Floor3
Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope (“dump” or “squeeze”) of the wheelchair seat.
Hanger Angle4
Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
Seat Width5
Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
Wheel Camber6
Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
Front Seat to Floor7
Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.
Footrest Width8
Measure from the inside of each legrest tubing the distance or desired distance between legrests.
Center of Gravity9
Measure from the front of the seat back post to the center of the rear axel.
Seat to Footrest Length10
Measure from the edge of the seat upholstery to the top rear of the footrest.
Backrest Angle11
Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5″ of dump.



Additional information

Specifications

Overall Width: 22"
Legrest Options: Swing Away
Seat to Floor Height: 18.00"
Frame Type: Folding
Width Between Armrests: 17.5"
Seat Widths: 18"
Seat Depths: 16"
Overall Width Open – Add to Seat Width: 4.00"
Hemi Height Option: No
Back Height: 16"
Angle-adjustable Back: No
Fold-down back for easy transport: Yes
Reclining Back Option: No
Rear Wheel Size: 12"
Pneumatic (air-filled) tire option: No
Quick-Release Axles: No
One-Arm Drive Option: No
Armrest Options: Fixed Height
Removable Legrests: Yes
Expedited Shipping Available: Yes
Product Weight: 23.5
